Ikki marta harakatlanadigan pnevmatik shiling

Ikki marta harakatlanadigan pnevmatik shiling

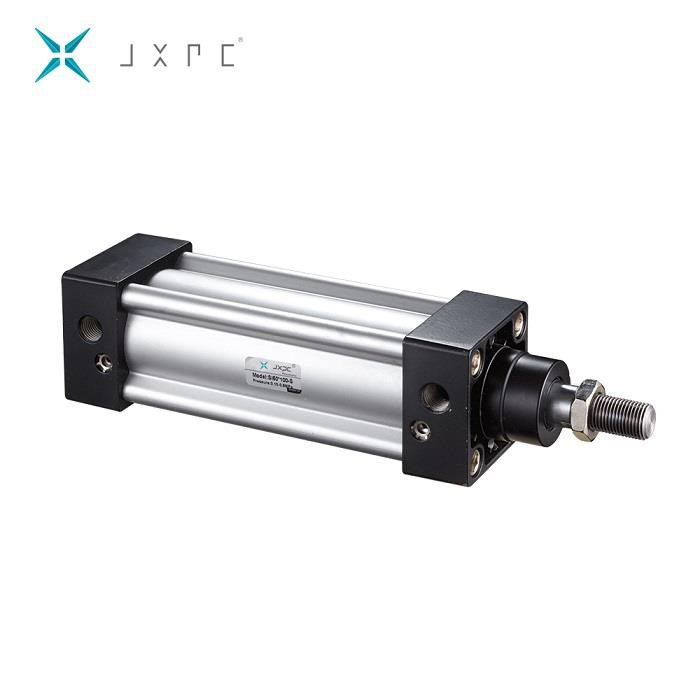

SI seriyali pnevmatik tsilindrni ISO6431 standartiga muvofiq ishlab chiqariladi, bu 100% Airtac markasi SI seriyali pnevmatik tsilindr bilan almashtiriladi.

So'rov yuborish

Ta'rif

SI seriyali pnevmatik tsilindrni ISO6431 standartiga muvofiq ishlab chiqariladi, bu 100% Airtac markasi SI seriyali pnevmatik tsilindr bilan almashtiriladi.

Umuman olganda, biz standart er-xotin tomonlama ish turini (SI), standart juftlikdan ishlaydigan ikkilamchi ish turini (SID) va ikkita shafta sozlangan qon tomir turi (SIJ) ni taklif qilamiz. Tsilindrning uzunligi 32 mm dan 200 mm gacha bo'lgan bo'lsa, zarb o'lchami 25 mm dan 1000 mm gacha bo'lishi kerak.

Xususiyatlari

Tsilindrni juda yumshoq, ishonchli va past shovqin bilan ishlaydigan ikkita silindrli qopqoq uchun sozlanishi yostiq.

* Kengliklari uchun keng doirada

* O'zini-soqol yotqizgichi bilan piston tayog'i soqolsizdir.

* Magnit va etarli barqaror uslublar mavjud.

Afzallik

1. Ikkala yo'nalishdagi siqishni tuzilishini taklif qiling

2. Yuqori kuchli oksidli alyuminiy qotishma naychalari, yuqori qattiqlik

3. Barcha muhrlar Yaponiyadan, Tayvandan, juda yaxshi sızdırmazlık ishlashi

4. Yuk tashishdan oldin 100% sinovdan o'tgan.

Xususiyatlar

Si qatorli pnevmatik shiling
Bore (mm)	32	40	50	63	80	100	125	160	200
Harakat namunasi	Ikki tomonlama tadbir
Foydalanish muhiti	Havo
Fix turi	Oddiy turi / FA turi / FB turi / KA turi / CB turi / LB turi / TC turi
Ish bosimi oralig'i	0.1-0.9Mpa
Bosim qarshiligini ta'minlash	1.35Mpa
Bufer	Sozlanishi bufer
Vaziyat harorati	-5 ° C dan 70 ° C gacha
Operatsion tezligi	50-800 mm / s
Port o'lchami	G1 / 8 ''	G1 / 4 ''		G3 / 8 ''		G1 / 2 ''		G3 / 4 ''

image001 (001)

Tuzilishi

Yo'q.	Belgilar	Yo'q.	Belgilar
1	Piston rodli non	10	Piston
2	Piston konusli	11	Kiyim
3	Old qopqoqning muhr uzig'i	12	Magnit (majburiy emas)
4	O-ring	13	Pistonli O-Ring
5	Yog 'o'tkazuvchanligi	14	Cover O-Ring
6	Old Muqova	15	Damping
7	O-ringni buffering	16	Olti burchakli vint
8	Piston rodasi O-Ring	17	Orqa qopqoq
9	Bochka

Diametri ichida shiling	Piston ravog'i tashqi diametri	Harakat namunasi		Siquv Maydoni (sm2)	Havo bosimi ((kgf / sm2)
Diametri ichida shiling	Piston ravog'i tashqi diametri	Harakat namunasi		Siquv Maydoni (sm2)	1	2	3	4	5	6	7	8	9
32	12	Ikki tomonlama tadbir	Bosim tomoni	8.04	8.04	16.08	24.12	32.16	40.20	48.24	56.28	64.32	72.36
32	12	Ikki tomonlama tadbir	Yon tomonni torting	6.90	6.90	13.80	20.07	27.60	34.50	41.40	48.30	55.20	62.10
40	16	Ikki tomonlama tadbir	Bosim tomoni	12.56	12.56	25.12	37.68	50.24	62.80	75.36	87.92	100.24	113.04
40	16	Ikki tomonlama tadbir	Yon tomonni torting	10.55	10.55	21.10	31.65	42.20	52.75	63.30	73.85	84.40	94.95
50	20	Ikki tomonlama tadbir	Bosim tomoni	19.63	19.63	39.26	58.89	78.52	98.15	117.78	137.41	157.04	176.67
50	20	Ikki tomonlama tadbir	Yon tomonni torting	16.49	16.49	32.98	49.47	65.96	82.45	98.94	115.43	139.92	148.41
63	20	Ikki tomonlama tadbir	Bosim tomoni	31.17	31.17	62.34	93.51	124.68	155.85	187.02	218.19	249.36	280.53
63	20	Ikki tomonlama tadbir	Yon tomonni torting	28.03	28.03	56.06	84.09	112.12	140.15	168.18	196.21	224.24	252.27
80	25	Ikki tomonlama tadbir	Bosim tomoni	50.26	50.26	100.52	150.78	201.04	251.30	301.56	351.82	402.08	452.34
80	25	Ikki tomonlama tadbir	Yon tomonni torting	45.36	46.36	90.72	136.08	181.44	226.80	272.16	317.52	326.88	408.24
100	25	Ikki tomonlama tadbir	Bosim tomoni	78.53	78.53	157.06	235.59	314.12	392.65	471.18	428.82	628.24	706.77
100	25	Ikki tomonlama tadbir	Yon tomonni torting	71.47	71.47	142.94	214.41	285.88	357.35	428.82	500.29	517.76	643.23
125	32	Ikki tomonlama tadbir	Bosim tomoni	122.72	122.72	245.44	368.16	490.88	613.60	736.32	859.04	981.76	1104.48
125	32	Ikki tomonlama tadbir	Yon tomonni torting	114.68	114.68	229.36	344.04	458.72	573.40	688.08	802.76	917.44	1032.12
160	40	Ikki tomonlama tadbir	Bosim tomoni	201.06	201.06	402.12	603.18	804.24	1005.30	1206.36	1407.42	1608.48	1809.54
160	40	Ikki tomonlama tadbir	Yon tomonni torting	188.49	188.49	376.98	565.47	753.96	942.45	1130.94	1319.43	1507.92	1696.41
200	40	Ikki tomonlama tadbir	Bosim tomoni	314.16	314.16	628.32	942.48	1256.64	1570.80	1884.96	2199.12	2513.28	2827.44
200	40	Ikki tomonlama tadbir	Yon tomonni torting	301.57	301.57	603.14	904.71	1206.28	1507.80	1809.42	2100.99	2412.56	2714.13

Bore	Standart kontur	Maks. Qon tomir	Ruxsat berilgan kontur
32	25 50 75 80 100 125 160 175 200 250 300 400 450 500	1000	2000 yil
40	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800	1200	2000 yil
50	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1200	2000 yil
63	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil
80	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil
100	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil
125	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil
160	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil
200	25 50 75 80 100 125 160 175 200 250 300 400 450 500 600 700 800 900 1000	1500	2000 yil

SI SERIES

SID SERIES

SIJ seriyali

Burni / tanovul	A	A1	A2	B	C	D	E	F.	G	H	Men	J	K	L
32	142	190	187	48	94	30	28	20	27.5	22	17	6	M10X1.25	M6
40	159	213	207	54	105	35	32	22	29	24	19	7	M12X1.25	M6
50	175	244	233	69	106	40	42	27	30	32	24	8	M16X1.5	M8
63	190	259	250	69	120	45	40	29	31	32	24	8	M16X1.5	M8
80	214	300	286	86	128	45	53	33	35	40	30	10	M20X1.5	M10
100	229	320	308	91	138	55	55	36	36	40	30	10	M20X1.5	M10
125	279	398	372.5	119	160	60	74	45	46	54	41	13.5	M27X2	M12
160	332	484	448	152	180	65	94	58	50	72	55	18	M36X2	M16
200	337	514	472	157	180	75	100	57	50	72	55	18	M36X2	M16
